线性长度测量系统
|
線性長度測量系統
产品编号:WDGAS58B
complete kit for retro-fitting
accessories make fitting both quick and reliable
cost effective way of upgrading your lift
SIN, TTL, HTL-output
Thread sizes: M8, M10, M12, M16 and M20
 PDF下载 |
|
|
線性長度測量系統
产品编号:WDGAS58E
Easy to mount on all motor shafts
Flexible mounting options
Space saving
SIN, TTL, HTL-output
Thread sizes: M8, M10, M12, M16 and M20
PDF下载 |
|
|
線性長度測量系統
产品编号:Length Measuring System
Complete Measuring System for Length Measurement
No slip until Speed of 1 m/s
Height typicaly. 17 stops, approx. 53 m
Resolution until 0,02 mm
Quick assembly
Applications: digital shaft copy for lifts, exact measurement of distance and speed
PDF下载 |
|
|
線性長度測量系統
产品编号:SZG65
Exceptional rugged length sensor
Measuring range: 0-1,250 mm
Output: incremental signals
IP65 encoder ready mounted
PDF下载 |
|
|
線性長度測量系統
产品编号:SZG81
Exceptional rugged length sensor
Measuring range: 0-2,500 mm to 0-6,250 mm
Output: incremental signals
IP65 encoder ready mounted
With other types of appliances to max. 42,000 mm available
PDF下载 |
|
|
線性長度測量系統
产品编号:SZG122
Exceptional rugged length sensor
Measuring range: 0-1,000 mm to 0-4,300 mm
Output: incremental signals
IP65 encoder ready mounted
PDF下载 |
|
|

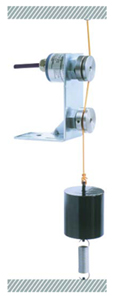

線性長度測量系統
产品编号:WDGMS
Virtually non-slip due to pre-tensioning and special cable up to a speed of 1 m/sec and a height of 17 stops
High accuracy with a resolution of up to 0.03 mm in the shaft
Quick, low-cost alternative to switches or other sensors
Simple installation thanks to complete set with pulley, idler pulley, parts for installation and tensioning fixture for measuring cable
PDF下载 |
|
|
線性長度測量系統
产品编号:WDGMSU
Particularly quiet and smooth-running, thanks to special belts and low-noise suspension.
Use up to speeds of 4 m/sec.
User-friendly, reliable alternative to switches and sensors.
Accuracy in the shaft: - Incremental encoder WDG up to 0,08 mm at 5000 pulses. - Absolute encoder WDG multiturn, with 8192 steps/turn (13 Bit) and 4096 turns (12 Bit), with CANopen- Lift or SSI Interface.
Fast, flexible installation with complete set of mechanical parts.
PDF下载 |
|
|
線性長度測量系統
产品编号:WDGMSMN
Particularly quiet and smooth-running, thanks to special belts and low-noise suspension.
Use up to speeds of 4 m/sec.
User-friendly, reliable alternative to switches and sensors.
Accuracy in the shaft: - Incremental encoder WDG up to 0,08 mm at 5000 pulses. - Absolute encoder WDG multiturn, with 8192 steps/turn (13 Bit) and 4096 turns (12 Bit), with CANopen- Lift or SSI Interface.
Fast, flexible installation with complete set of mechanical parts.
PDF下载 |
|
| |
