紫外線數據記錄器、監視器和控制器 Datalogger, Monitors and Controllers
1-4 channel dataloggers, up to 2 years of permanent logging
UV broadband, UVA, UVB, UVC, Erythema or blue light measurement
monitors to display radiation and dose
3 programmable relay outputs for process control, free PC software
Photonic Sensor Monitor - Laboratory Tabletop for Photonic Process Control
Two-channel measurement and control module for control and automation of irradiation processes.
Tabletop unit incl. power supply.
Visualization of radiation, dose and state information.
Three programmable relays (banana sockets) for automation of single and multi stage irradiation processes.
USB/RS232 data output.
Photonic Sensor Monitor 詳細規格
Sensor Monitor 5.0 - Radiation Monitor and Controller
Measuring and control module for monitoring and automation of irradiation processes.
Indication of radiation, dose and status information.
Three programmable relays for automation of single- and multi-level irradiation processes.
Input for one probe with pre-amplification or one photodiode.
Sensor Monitor 5.0 詳細規格
Sensor Monitor 5.0 Connect - Radiation Monitor and Controller with Data Output
Like Sensor Monitor 5.0 but with USB and RS232 outputs for data transfer to a PLC or computer.
Sensor Monitor 5.0 Connect 詳細規格
Like Sensor Monitor 5.0 but with two measuring inputs for simultaneous measurement/switching with two probes/photodiodes for measurement of two different radiations or at two different measurement points.
Various logic combinations of both signal inputs with the three relays.
Sensor Monitor 5.0 Double詳細規格
Sensor Monitor 5.0 Double Connect - 2 Channel Radiation Monitor and Controller with Data Output
UVMINILOG - Miniature UV Datalogger for Science and Production Monitoring
Miniature UV datalogger for long-time monitoring of moving goods, persons or animals, additional sensors e.g. temperature, pressure, rel. humidity, illuminance (VIS) 2.000.000 data records.
A sensor with application specific characteristics (UV broadband, UVA, UVB, UVC, erythema or v(lambda)) and a PC software is included.
UVMINILOG 詳細規格
UVMICROLOG - Miniature UV Datalogger for Science and Production Monitoring
Like UVMINILOG but smaller and less weight, also available as IP67 version, shorter battery lifetime.
UVMICROLOG 詳細規格
UVQUADRULOG - 4-Channel UV Datalogger for Science and Production Monitoring
4-channel datalogger, configurable display, operation with battery or power supply, DIN rail mountable, for use with all TOCON detectors, price without detector.
UVQUADRULOG 詳細規格
RADIKON - Versatile Radiation Controller for Industry and Science
Versatile industry measurement controller for control cabinet integration.
adjustable setpoints, relay output, condition visualization via multicolor-LED, possible inputs - photo current 4nA...4μA, 4...20mA, 0...20mA, 0...xV (x configurable up to 10), DIN rail mounting.
RADIKON 詳細規格
SENSOR TESTER - Irradiation Chamber for Two Channel Sensor Testing
Radiation chamber for calibration and testing of UV sensors, two channels, UVA, UVB oder UVC source, available for all sglux sensors.
SENSOR TESTER 詳細規格

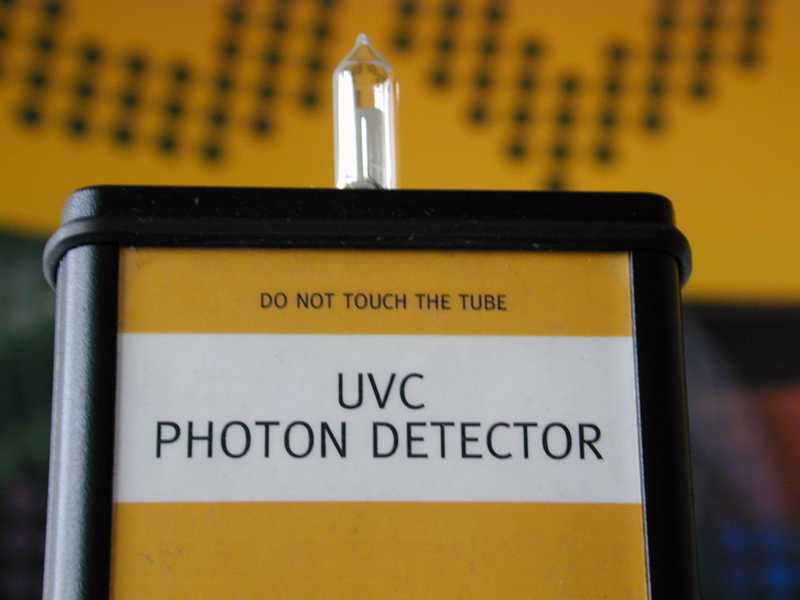

UVC Photon Detector - Handheld unit for very low UVC radiation detection
Module designed to measure very low UVC radiation intensities in the Femtowatt area (UV labor protection, fire and flame detection). The module is based on a UVTRON, also useful for evaluation of UVTRON tubes.
UVC Photon Detector 詳細規格
